Ozone generators for water treatment
Ozone generators for bottling, rinse water and process water, from the compact SOZ 10G to larger models for big water systems, with a fully integrated skid option.
Request a free application assessment with a Biozone engineer
For unoccupied spaces or enclosed water treatment systems only. Ozone should not be inhaled.

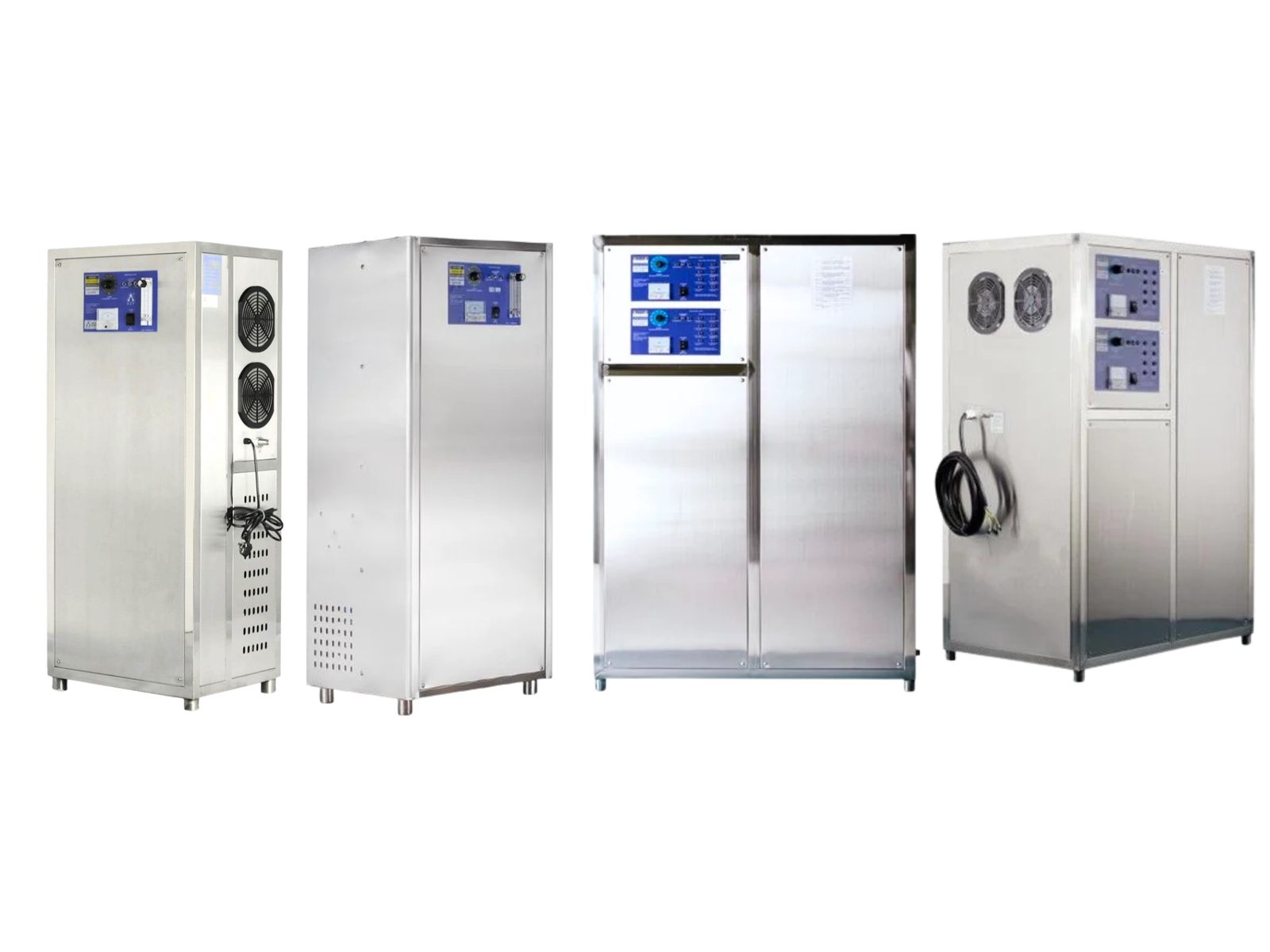

What is the SOZ series?
The SOZ series is a range of ozone generators supplied and supported by Biozone, a South African engineering company with 25 years in business. It runs from the compact SOZ 10G to larger models for big water systems.
Ozone is made on site from oxygen and dosed into the water you need to treat. SOZ-series ozone generators supplied by Biozone are used to disinfect water in bottling and rinsing applications across Africa.
There are three levels to choose from:
- Entry range (10G to 60G)
- Next level range (80G to 400G)
- Fully integrated skid: SOZ generators can also be supplied on a fully integrated skid, with the controls and safety add-ons built in.
Not sure which size fits? A Biozone engineer will look at your application and recommend a model.
Looking for other ozone generators? See the full Biozone ozone generator range.
SOZ entry range: 10G, 20G, 40G and 60G
SOZ 10G
10 g/h. Specification on request.
SOZ 20G
20 g/h. Specification on request.
SOZ 40G
40 g/h. Specification on request.
SOZ 60G
60 g/h. Specification on request.
SOZ next level range: 80G, 100G, 200G and 400G
SOZ 80G
80 g/h. Specification on request.
SOZ 100G
100 g/h. Specification on request.
SOZ 200G
200 g/h. Specification on request.
SOZ 400G
400 g/h. Specification on request.
SOZ specifications
SOZ 10G
| Specification | SOZ 10G |
|---|---|
| Ozone output | 10 g/h |
| Oxygen supply | Built-in PSA oxygen generator (85% ± 5, 3 L/min) |
| Cooling | Air cooling |
| Operating voltage | 220–240 V, 50–60 Hz |
| Power | Confirm with Biozone |
| Controls | Stepless output adjustment |
| Ambient | < 40 °C; humidity < 70% |
| Dimensions | 500 — 390 — 1200 mm |
| Net weight | 46 kg |
| Warranty | 12 months against factory defects |
SOZ 20G to 400G
| Model | Ozone output | Specification |
|---|---|---|
| SOZ 20G | 20 g/h | Specification on request |
| SOZ 40G | 40 g/h | Specification on request |
| SOZ 60G | 60 g/h | Specification on request |
| SOZ 80G | 80 g/h | Specification on request |
| SOZ 100G | 100 g/h | Specification on request |
| SOZ 200G | 200 g/h | Specification on request |
| SOZ 400G | 400 g/h | Specification on request |
The fully integrated SOZ skid
For sites that want the generator, controls and safety equipment in one package, a SOZ generator can be supplied on a fully integrated skid. Each skid is put together for the application, and these add-ons can be included:
- Off-gas ozone destructor
- Integrated PLC
- Integrated gas mixing pump
- Integrated Solenoids for SCADA
- Dissolved ozone meter
- Backflow prevention
- ORP meter
- Ambient ozone leak alarm
All of these are optional extras. Our team will recommend the ones your application needs.
Applications
Bottling: rinse and fill water
Ozone disinfects the water used to rinse bottles and the water that goes into them, from rinsing to filling.
Bottled water systems / Ozone generators for bottling plants / Packaging disinfection
Agriculture: fruit rinse water
Ozone treatment of packhouse rinse water, designed to reduce microbial load in the water used for the fruit.
Food processing water
Ozone treatment of incoming and process water in food production facilities.
Water treatment solutions
Aquarium life support
Biozone also supplies ozone generation for aquarium life support. At uShaka Marine World: oxygen-fed ozone generation with ORP monitoring for multi-species marine and freshwater life support systems, in continuous operation since 2005.
Read the uShaka project
Customers using Biozone ozone generation
Biozone ozone generation is used to treat water at these sites :
Choppies, Zambia
Choppies in Zambia operates two 20G SOZ ozone generators from Biozone and uses them to disinfect water throughout its bottling process, from rinsing to filling.
A South African bottled water brand
A South African bottled water brand operate multiple (20G, 60G, 80G & 100G) Biozone SOZ-series ozone generators to disinfect water in its bottling process.
Umbhaba Estates, Hectorspruit
At Umbhaba Estates’ banana packhouse near Hectorspruit, a Biozone 60G integrated SOZ Skid is designed to reduce microbial load in the rinse water used for the fruit, supporting rinse-water hygiene in the packhouse.
Real Plastics
Real Plastics operates a 40G SOZ ozone generator for its rinsing water and for filling bottled water.
Bene Water
Bene Water operates a 10G & 30G SOZ with oxygen supply for its rinsing and bottling water, with ongoing on-site servicing by Biozone.
Subline Tastes
Subline Tastes uses a Biozone 60G SOZ ozone generator to treat incoming municipal water at its food production facility.
uShaka Marine World, KwaZulu-Natal
uShaka Marine World runs 12 x 400G SOZ’s and approximately 10 x 200G SOZ ozone generators on its marine life support systems, which hold a total of 3 to 5 million litres of water. Read the uShaka project
Supplied and supported by a South African engineering company
SOZ ozone generators are supplied and supported by Biozone, a South African engineering company with 25 years in business. Our engineers help you choose the right model, size the system around your water and plan how it fits into your process.
Safety: For unoccupied spaces or enclosed water treatment systems only. Ozone should not be inhaled.
Request an application assessment with a Biozone engineer
Request a free application assessment with a Biozone engineer
Prefer to talk?
Email: [email protected]
Phone 1: +27 67 972 2169
Phone 2: +27 11 791 4403
Biozone Manufacturing,
Unit 2 Northlands Production Park,
Epsom Avenue, Hoogland,
Randburg 2162
SOZ series questions
What is the SOZ series?
A range of ozone generators supplied and supported by Biozone. The entry range covers the 10G, 20G, 40G and 60G, and the next level range covers the 80G, 100G, 200G and 400G. SOZ generators can also be supplied on a fully integrated skid with optional add-ons.
Which SOZ model do I need?
It depends on how much water you treat and how it’s used. Tell us about your application and a Biozone engineer will recommend a model. The assessment is free.
Do SOZ generators need an external oxygen supply?
The SOZ’s have a built-in PSA oxygen generator, so it doesn’t need a separate oxygen supply.
Are SOZ generators air-cooled or water-cooled?
The SOZ range from Biozone is air-cooled.
What’s on the integrated skid?
The skid can include an off-gas ozone destructor, a gas–liquid mixing pump, backflow prevention, an ORP meter and an ambient ozone leak alarm. All are optional extras.
Can SOZ generators be used in occupied rooms?
No. For unoccupied spaces or enclosed water treatment systems only. Ozone should not be inhaled.
See the full Biozone ozone generator range, including industrial ozone generators for South African water, wastewater and process plants.
